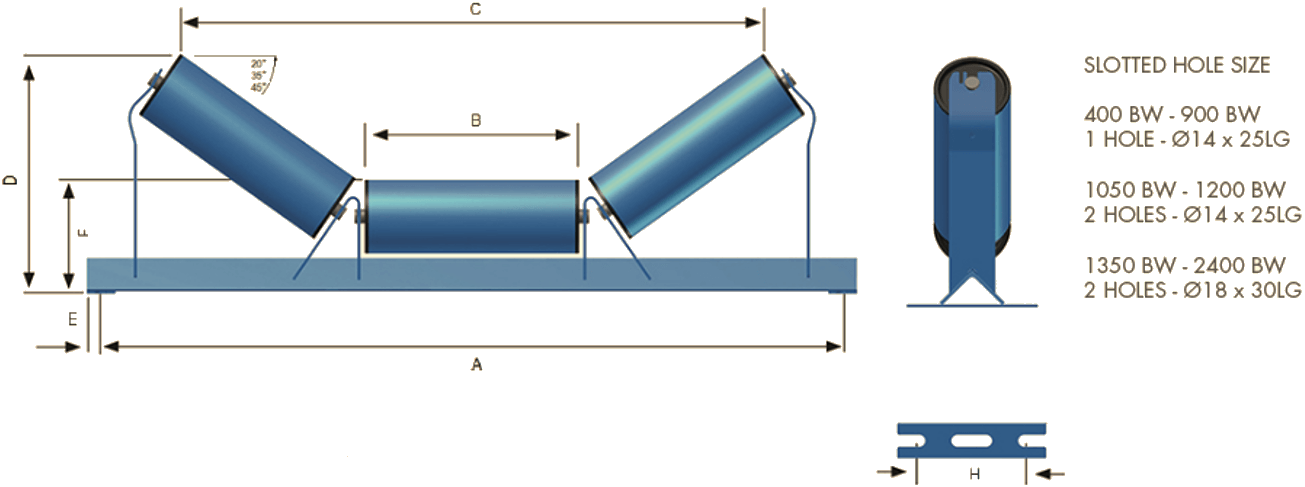

3 Roll Belt Idler Set
Ø 127 Steel Rollers
| Belt Width | A | B | 20° | 35° | E | F | H | Mass | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C | D | C | D | Roll | Rotating (per set) | Idler Set | ||||||
| 400 | 634 | 170 | 470 | 259 | 430 | 298 | 684 | 203 | 0 | 3.8 | 8.8 | 20 |
| 450 | 686 | 190 | 528 | 266 | 483 | 309 | 736 | 203 | 0 | 4.2 | 9.5 | 21 |
| 500 | 736 | 200 | 557 | 270 | 509 | 315 | 786 | 203 | 0 | 4.3 | 9.8 | 22 |
| 600 | 838 | 240 | 672 | 283 | 615 | 338 | 888 | 203 | 0 | 4.9 | 11.2 | 24 |
| 750 | 990 | 290 | 816 | 300 | 747 | 367 | 1040 | 203 | 0 | 5.7 | 12.9 | 28 |
| 900 | 1144 | 340 | 960 | 318 | 879 | 395 | 1194 | 203 | 0 | 6.5 | 14.7 | 31 |
| 1050 | 1296 | 390 | 1104 | 335 | 1011 | 424 | 1346 | 203 | 100 | 7.2 | 16.4 | 34 |
| 1200 | 1448 | 450 | 1277 | 355 | 1169 | 458 | 1498 | 203 | 100 | 8.2 | 18.5 | 38 |
| 1350 | 1600 | 500 | 1421 | 372 | 1301 | 487 | 1660 | 203 | 240 | 8.9 | 20.2 | 48 |
| 1500 | 1752 | 560 | 1593 | 393 | 1459 | 522 | 1812 | 203 | 240 | 9.9 | 22.3 | 53 |
| 1650 | 1904 | 610 | 1737 | 410 | 1591 | 550 | 1964 | 203 | 240 | 10.6 | 24.0 | 60 |
| 1800 | 2058 | 660 | 1881 | 427 | 1723 | 579 | 2118 | 203 | 310 | 11.4 | 25.7 | 65 |
| 2000 | 2260 | 740 | 2112 | 454 | 1934 | 625 | 2320 | 203 | 310 | 12.6 | 28.5 | 73 |
| 2100 | 2362 | 765 | 2184 | 463 | 2000 | 639 | 2422 | 203 | 310 | 13.0 | 29.4 | 75 |
| 2200 | 2464 | 800 | 2285 | 475 | 2092 | 659 | 2524 | 203 | 310 | 13.5 | 30.6 | 78 |
| 2400 | 2668 | 870 | 2486 | 499 | 2277 | 700 | 2728 | 203 | 310 | 14.6 | 33.0 | 84 |
